Ingersoll Rand

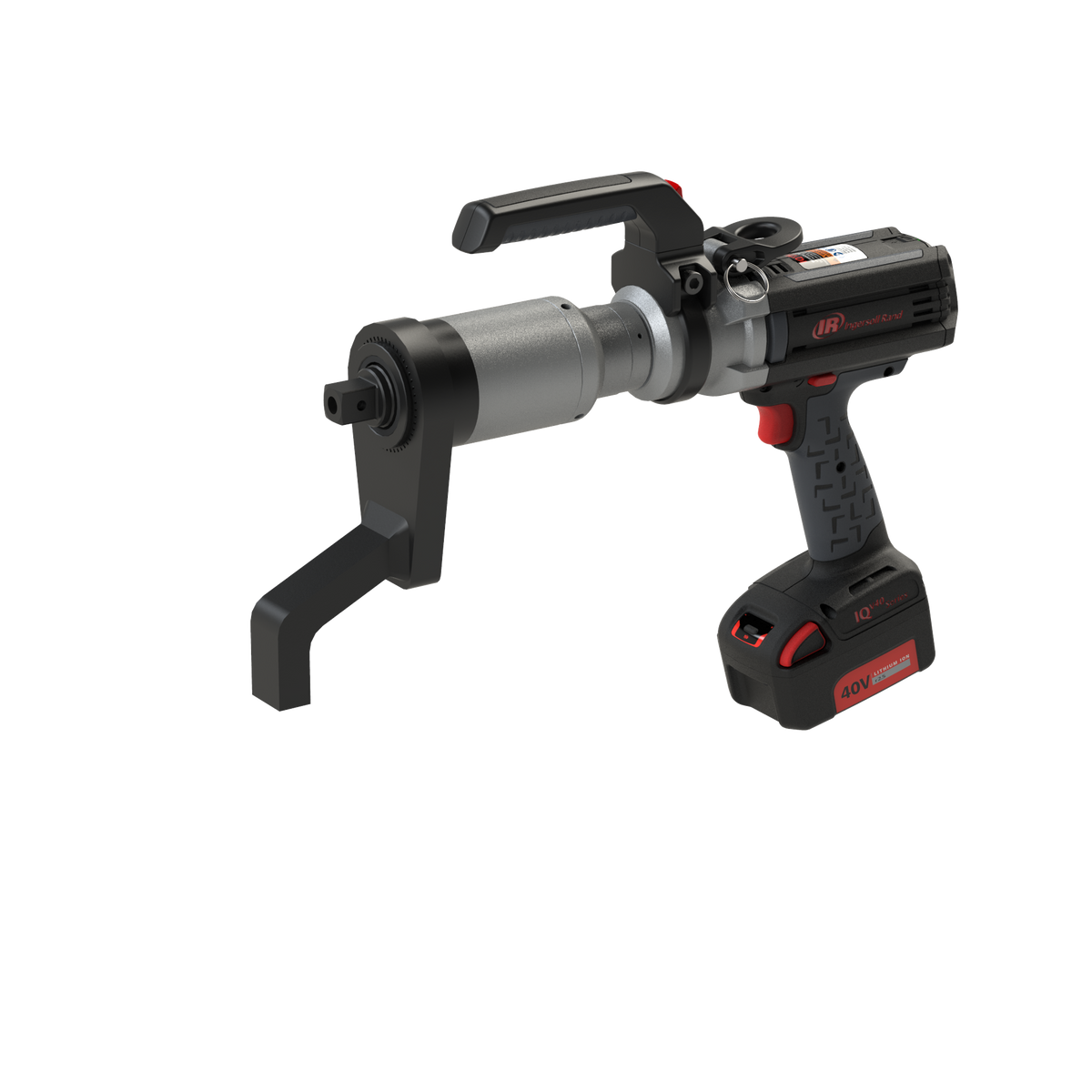

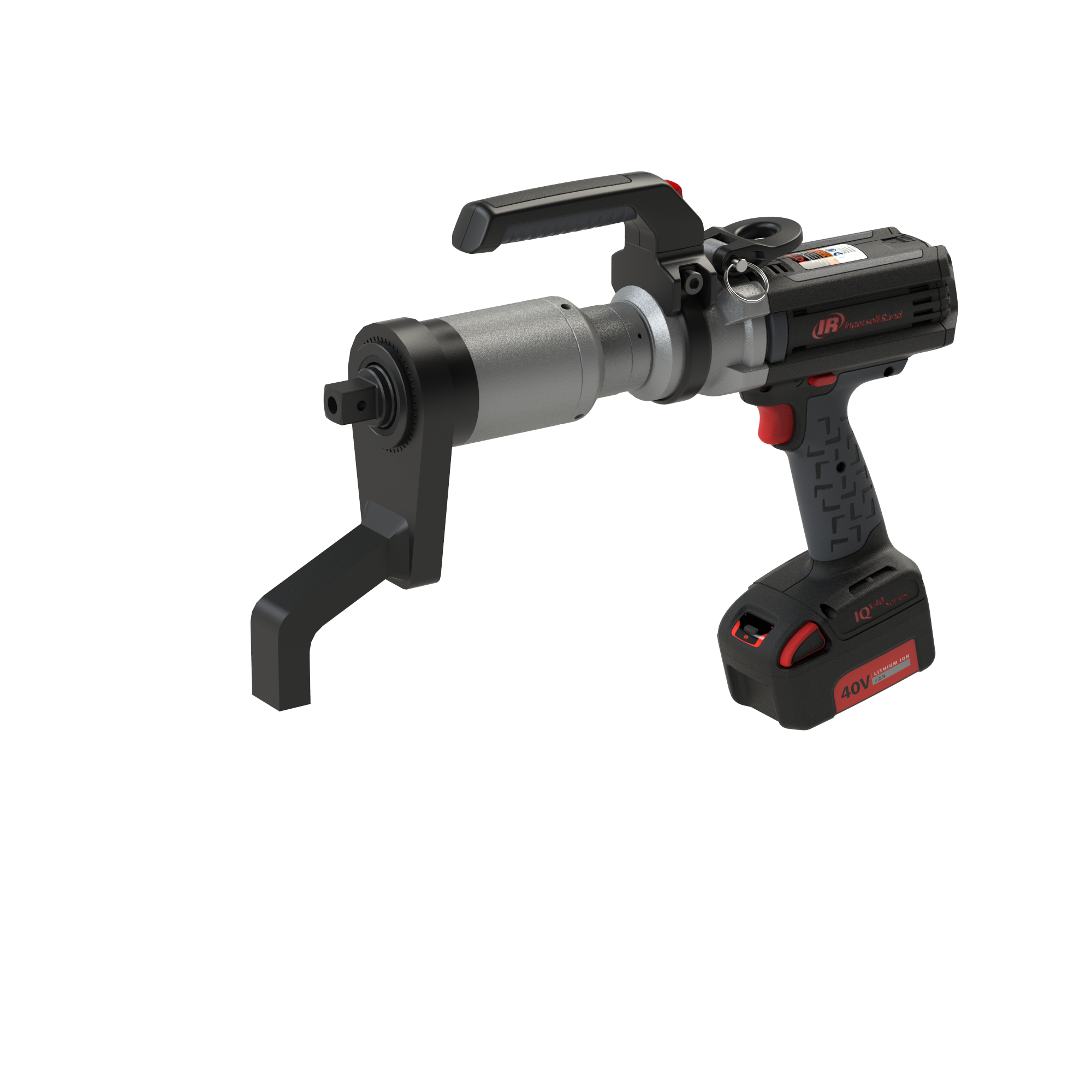

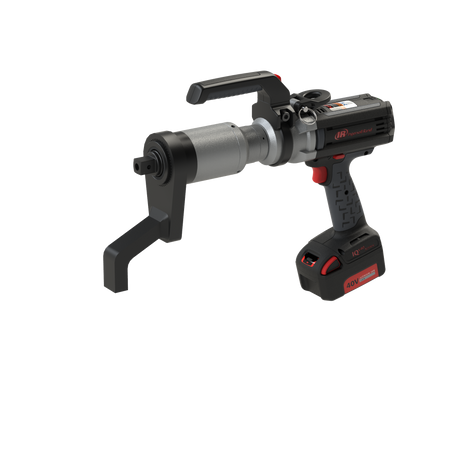

1" 40V Cordless Torque Wrench, Bare Tool, 35403 in-lb Torque, Bluetooth/802.15.4, Pistol

SKU: QXXD5PT40CPM16
This item falls outside standard shipping limits. LTL Freight only. Please contact us for a quote.
Call for Price
Out of stock
Bare tool only; batteries and charger sold separately.

ASK AN EXPERT

Email 1.888.598.6657

Meet the tool that’s taking torque to the next level - the QX Series™ 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before. A highly evolved 40V addition to the QX Series, QX Series™ 40V Cordless Torque Multiplier is more rugged, powerful, and twice as fast as its 20V QX Series counterpart while still offering premium accuracy, comfort, and control. An on-board persistent clock automatically timestamps, an advanced cooling fan extends runtime, and an ergonomic handle maximizes support. But next-gen torque demands next-gen tech, which is why the 40V seamlessly integrates with the INSIGHT Connect app and INSIGHTqcx Controller to easily log tightening data, program tool functions, and so much more. Unmatched speed, unbound accessibility, unmistakable data - only with the uncompromising QX Series™ 40V Cordless Torque Multiplier.

PRODUCTIVITY: Integrate together with other QX Series tools in your assembly operations with wireless connection to the INSIGHTqcx Controller. Share tightening data via email for post processing verification through the free INSIGHT Connect app. Easy pairing to any Apple iOS or Google Android device to program torque, angle or both without t he need for a Wi-Fi network

CONFIDENCE: Precision where you need it most. Ingersoll Rand's closed-loop transducer control at the heart of the tool delivers accurate, traceable torque and angle results. Forget manual pen and paper recording. Automatically record every tightening cycle to the day and minute with a persistent internal clock. Store 1,200 records on-board and easily download and share them through the free INSIGHT Connect app.

DURABILITY: Longevity in harsh applications with steel reinforced motor housing. Cool under pressure, Internal fan operates independently of drive motor enabling repeated high torque operation without overheating. Bolt after bolt performance. Tighten up to 300 bolts to 995 foot pounds per charge on the IQV 40 Series battery.

SAFETY: Tethering ring included for safety and drop prevention.

COMFORT: Dual Axis 360 degree handle provides instant adjustability, maximizing comfort and flexibility when working on multiple joints and applications.

Model

Torque Max (ft-lb)

Torque Max (Nm)

Torque Min. (ft-lb)

Torque Min. (Nm)

Speed (RPM)

Weight (lbs) With Reaction Arm; Without Battery

Weight (kg) With Reaction Arm; Without Battery

Weight (lbs) With Reaction Arm and Battery

Weight (kg) With Reaction Arm and Battery

Length (in)

Length (mm)

QXBD5PT200PM12 QXXD5PT200PM12 QXFD5PT200PM12

148.5

200

29.5

40

83

13.9

6.3

15.4

7

15.4

390.4

QXBD5PT500PM12 QXXD5PT500PM12 QXFD5PT500PM12

369.9

500

73.8

100

27

13.9

6.3

15.4

7

15.5

392.9

QXBD5PT10CPM12 QXXD5PT10CPM12 QXFD5PT10CPM12

737.6

1000

147.5

200

15

20

9.1

21.5

9.8

16.7

422.4

QXBD5PT13CPM16 QXXD5PT13CPM16 QXFD5PT13CPM16

995.7

1350

199.1

270

11

20

9.1

21.5

9.8

16.7

423.2

QXBD5PT20CPM16 QXXD5PT20CPM16 QXFD5PT20CPM16

1475.1

2000

295.0

400

6.8

21

9.5

22.5

10.2

18

456.7

QXBD5PT27CPM16 QXXD5PT27CPM16 QXFD5PT27CPM16

1991.4

2700

398.3

540

5.5

21

9.5

22.5

10.2

16.9

430

QXBD5PT40CPM16 QXXD5PT40CPM16 QXFD5PT40CPM16

2950.2

4000

590.0

800

3.3

27.5

12.5

29

13.2

18.9

480.3

Flat rate shipping ($25.00) under $499.98

Prepaid shipping over $499.99 (some exclusions)

Special Freight (LTL Freight) may apply on selected items

1-year Tool, 2-year Battery, 3-year Charger
