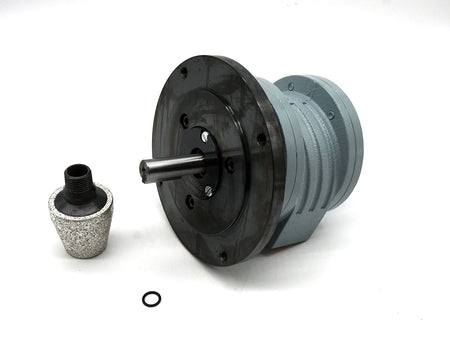

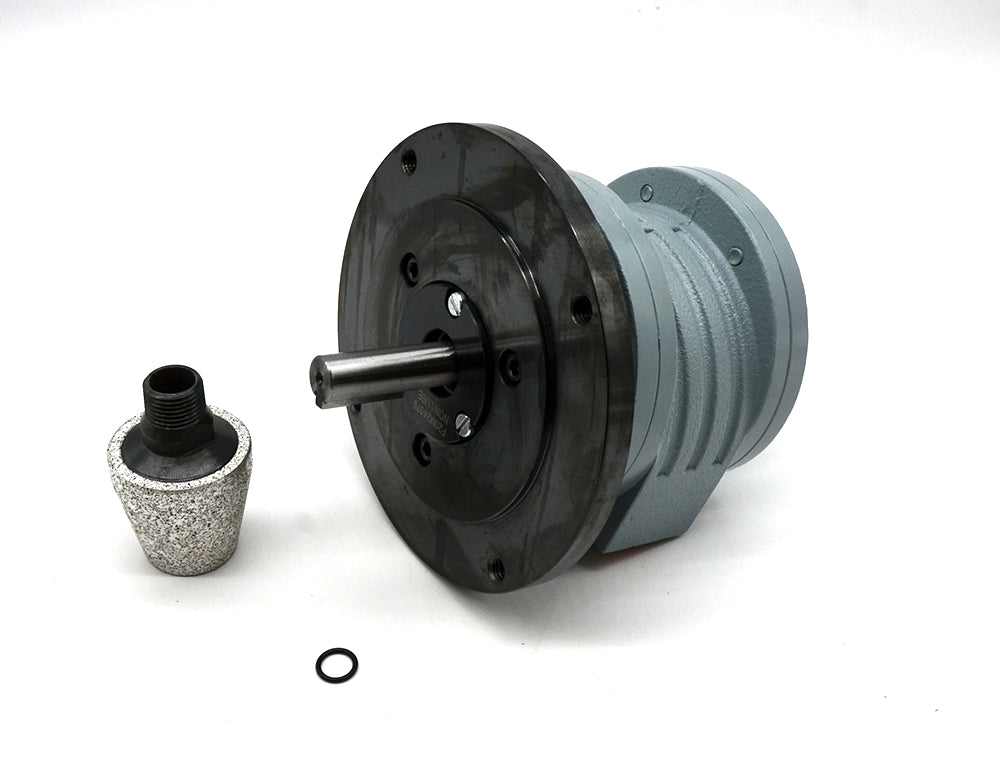

Direct Drive Lube Free Air Motor, 7900 RPM, 3.6 HP, 11.8 NM, Reversible
This item falls outside standard shipping limits. LTL Freight only. Please contact us for a quote.
Couldn't load pickup availability
ASK AN EXPERT
| Model | Max Power hp (kW) | Speed at Max Power (rpm) | Free Speed (rpm) | Starting Torque ft-lbs (Nm) | Stall Torque ft-lbs (Nm) | Air Consumption at Max Power scfm (m³/m) | Weight lbs (kg) |
|---|---|---|---|---|---|---|---|
| SM1AMA-A | 0.45 (0.34) | 7000 | 15000 | 0.4 (0.55) | 0.57 (0.77) | 20 (0.57) | 2.43 (1.1) |
| SM1AMAL-A | 0.45 (0.34) | 7000 | 15000 | 0.4 (0.55) | 0.57 (0.77) | 20 (0.57) | 2.43 (1.1) |
| SM2AMAN-A | 0.9 (0.67) | 4000 | 8000 | 1.7 (2.3) | 2.3 (3.1) | 30 (0.85) | 9.15 (4.15) |
| SM2AMC-A | 0.9 (0.67) | 4000 | 8000 | 1.7 (2.3) | 2.3 (3.1) | 30 (0.85) | 9.15 (4.15) |
| SM4AMAN-A | 1.5 (1.1) | 3000 | 7900 | 2.6 (3.5) | 4.1 (5.6) | 67 (1.9) | 11.22 (5.09) |
| SM4AMB-A | 1.5 (1.1) | 3000 | 7900 | 2.6 (3.5) | 4.1 (5.6) | 67 (1.9) | 11.22 (5.09) |
| SM6AMA-A | 3.6 (2.7) | 3000 | 7900 | 5.3 (7.2) | 8.7 (11.8) | 120 (3.5) | 16.25 (7.4) |
| SM6AMAN-A | 3.6 (2.7) | 3000 | 7900 | 5.3 (7.2) | 8.7 (11.8) | 120 (3.5) | 16.25 (7.4) |
| SM8AMA-A | 4.8 (3.6) | 2500 | 7000 | 10 (13.6) | 14 (19) | 152 (4.3) | 22.5 (10.2) |
| SM8AMAN-A | 4.8 (3.6) | 2500 | 7000 | 10 (13.6) | 14 (19) | 152 (4.3) | 22.5 (10.2) |
Flat rate shipping ($25.00) under $499.98
Prepaid shipping over $499.99 (some exclusions)
Special Freight (LTL Freight) may apply on selected items
1-year
